  • Suitable for horizontal transport, order picking or as a workstation
  • Quick lift reduces the number of pump strokes
  • Short truck length provides narrow turning radius
  • Angled fork tips provide easy pallet entry and safe handling

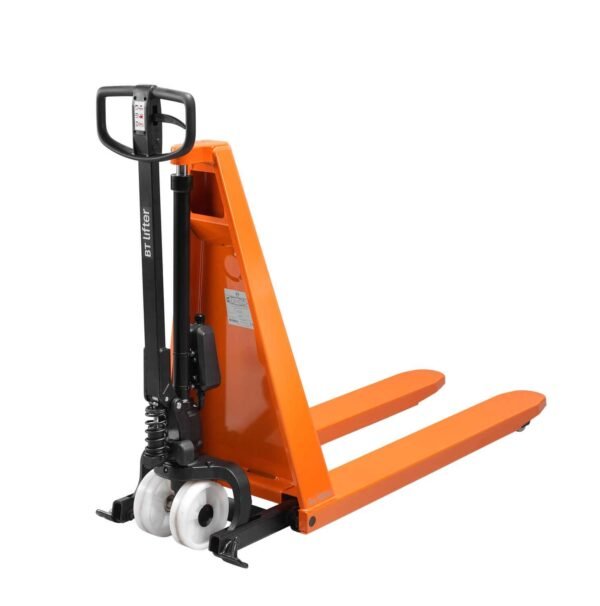

The BT High Lifter manual hand pallet truck is a versatile scissor lift truck which can increase productivity in your operation. This truck can be used like a traditional hand pallet truck to transport loads weighing up to 1000kg, but it can also be used as a height adjustable workstation thanks to it's ergonomic height adjustable forks. This truck has been manufactured using the world renowned Toyota Production System to deliver the highest levels of quality and reliability.

Ergonomic grip
Enclosed handgrip design in high strength polymer provides operator comfort and hand protection.

Increased security
Supporting clamps in front of the rollers provide increased security by reducing the risk of tipping forward. Adjustable stabilisers automatically brake, to ensure safety and stability during operation.

Smooth lowering
The BT Lowering control with stainless steel lowering valve offers a long, trouble-free life.

Support arms
Sturdy support arms

  • Ergonomic workstation
  • Manual or electric lift
  • Up to 1 tonne

Our BT High Lifters can go up to 0.8 metres using automatic height adjustment for safe and easy movement. They are versatile and user-friendly, as they can be used as ergonomic workstations. Available as manual or electric hand pallet truck also as galvanised models for wet/corrosive/hygienic environments.

Our BT High Lifter Manual provides ergonomic handling of your goods at elevated heights. In addition to functioning as a hand pallet truck, this model also serves as a comfortable, height-adjustable workstation ideally suited to distribution and sorting operations.

  • Manual lift.
  • Angled fork tips provide easy pallet entry and safe handling.
  • Supporting clamps in front of the rollers reduce the risk of tipping forward.
  • Stabilizers to ensure safety and stability in operation.
  • Battery indicator as standard.
  • Quicklift-function as standard. Including BT Lowering Control (BLC) for smooth handling.
  • Robust design, optimized truck weight, well proven components, and produced to Toyota Production System principles
  • This product has been environmentally declared.
  • Model - HHM100 - Included
  • Handle - Standard handle - Included
  • Lift Height - 800 mm - Included
  • Fork width - 560 mm - Included
  • Fork length - 1190 mm - Included
  • Fork wheels - Single Nylon -Standard/Optional
  • Steering wheel - Nylon -Standard/Optional

Request More Info

  • Make Toyota
  • Model BT High Lifter Manual
  • Year New
  • Condition New
  • Load Capacity 1000 kg
  • Lift Height 800 mm
  • Other Info Free Delivery
